What is Light tape?

Light Tape employs a radically distinctive and patent-protected form of electroluminescent technology. It exists in the form of ultra-low-profile, lightweight panels and strips that seamlessly and evenly illuminate from edge to edge. The philosophy behind the product is simple: a light’s physical design should not restrict design or artistic vision. With Light Tape, you have the possibility to turn anything into the light. That’s where our specifics stop and your creativity starts.

how light tape® works

Compared to alternate EL technologies, no one comes close to our quality. We start by employing only the best materials to deliver shocking performance. We have a unique manufacturing process, a departure from traditional batch silk screening. Would you want your light made on the same machine as a t-shirt screen printer? We don’t either, but that is how most alternate lamps are made.

NOVEL CHEMISTRY

Light Tape®’s one-of-a-kind chemistry is protected by numerous patents. Our material’s layers are bonded at the chemical level, producing a brighter, more durable lighting source. Light Tape® is a true solid state system. Other EL producers glue the rear electrode to the material, which easily separates with exing or temperature changes, leading to electrical failure.

BEST MATERIALS

Only the best phosphors and conductive lms are used in Light Tape®. The combination produces
a brighter, more durable light that uses less energy. Other EL producers use low grade phosphors and poor conductive materials resulting in non- uniformity of brightness and poor
energy ef ciency, not to mention much shorter lifetimes.

AMERICAN MADE

Light Tape® is manufactured in the United States under strict quality control standards. Our own proprietary production methods create an electroluminescent light source unlike any other in the world. We are producing a lamp that is built to last, able to withstand the toughest applications.

UNPRECEDENTED LIFETIMES

We are producing a lamp that is built to last, able to withstand the toughest applications. There are dozens of things that cause a lamp to fail, but most do not affect Light Tape®.


Energy Consumption

We don’t burn electricity, we store it for a millisecond and release it as light. Our unique low energy design consumes less than 1 watt per linear meter at 2.54 cm wide (0.3 watts per linear foot at 1 inch wide) with even illumination and at equal brightness across the surface. This makes Light Tape® 40% more efficient than LEDs and 60% more efficient than standard florescent bulbs. The only thing you’re sacrificing is the bulkiness. And the heat. That’s right, Light Tape® stays cool to the touch. Since the energy goes towards the light and not the heat, operation is very cost effective. Pair this with a real-life 40,000 hour lifetime rating, and we’re raising the bar all over the place.


Color Options

Light Tape is available in a variety of colors. Our natural base colors are Classic Natural Blue andExtreme Blue-Green. We can even make a custom color for you if desired, but we ask that a minimum volume is purchased.

For the exact Kelvin measurements of our colors and brightness levels, download our Color Tech guide.

*Note that the colors in this gallery are simulated to match as close as possible to the final product, but we recommend seeing a sample in person to understand the true illuminated color.


Sizes

Light Tape® is available in strips, priced by linear foot, and panels, priced by square foot. We also offer custom shapes upon request.
For an easy take away, download our PDF version: Light Tape® Strips and Panels specifications.

Strips

Available Illuminated Widths: 1/4″ 1/2″ 1″  2″ 4″ 6″

  • Thickness: 0.02″
  • Laminated Width: the laminate barrier adds an additional 1/2″ to the illuminated width
  • Current Consumption: 0.3-0.9 milliamps per square inch depending on service hours
  • Power Consumption: Average of 0.3 watts per linear foot for 1″ width based on brightness setting
  • Power Source: AC or DC input to Smart Driver Power Supply
  • Useful Life: Up to 40,000 hours

Panels

Available Illuminated Widths: 6″ 12″ 18″ 24″

  • Thickness: 0.02″
  • Laminated Width: the laminate barrier adds an additional 1/2″ to the illuminated width
  • Current Consumption: 0.3-0.9 milliamps per square inch depending on service hours
  • Power Consumption: Average of 6 watts per square feet based on brightness setting
  • Power Source: AC or DC input to Smart Driver Power Supply
  • Useful Life: Up to 40,000 hours

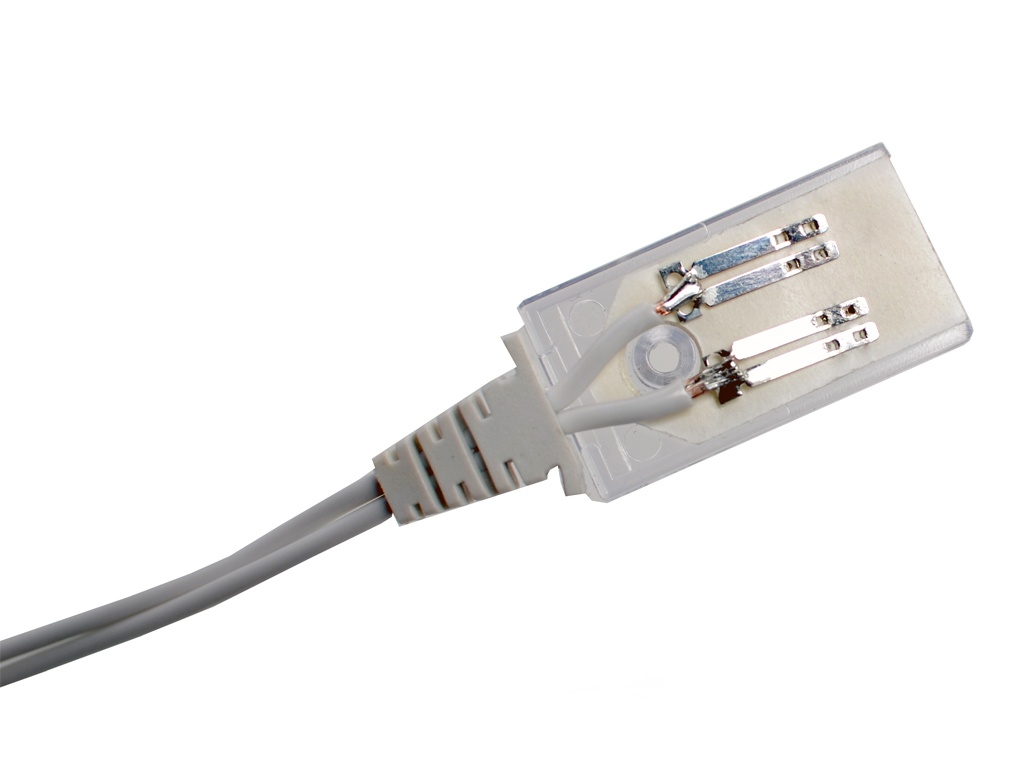

Connectors

We have available Standard Connectors and Low Profile Connectors to suit all projects

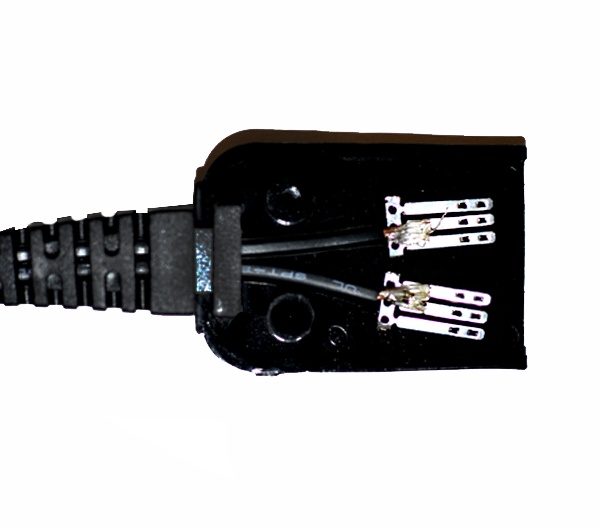

Standard Butyl

Low Profile Butyl

Dimensions Standard Butyl

Width: 1.31″
Length: 1.88″
Height: 0.56″

Dimensions Standard Pins

Width: 2.88″
Length: 0.63″
Length: 0.56″

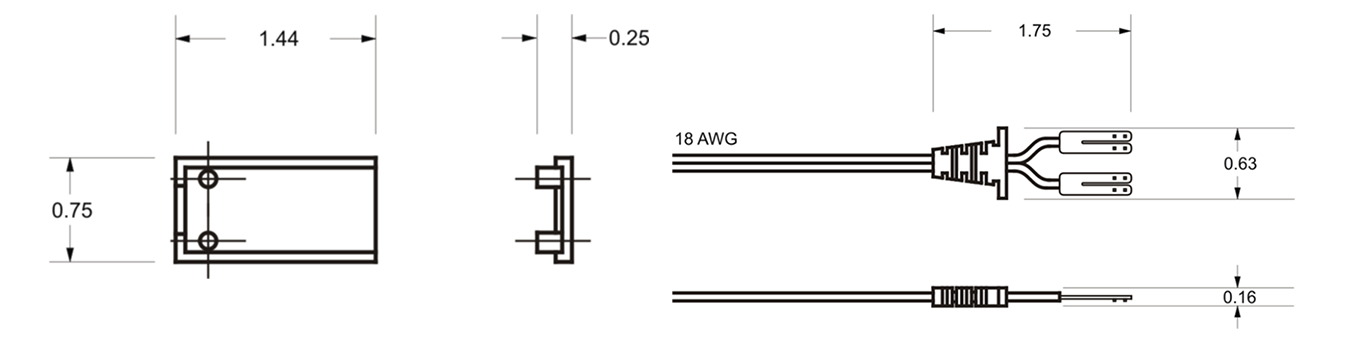

Dimensions Low Profile Butyl

Width: 0.75″
Length: 1.44
Height: 0.25″

Dimensions Low Profile Pins

Width: 0.63″
Length: 1.75″
Height: 0.16″


Power Supplies

Our Smart Driver™ power supplies accept standard worldwide AC input voltages and DC input voltages . Most often you only need one power supply for multiple segments of Light Tape®. Contact one of our lighting gurus to determine which power supply is needed for you.

AC Input

Download our AC Input Smart Driver™ specifications.

 Model DSD-200  Illuminated Area: 5-250 sq. in. Input Current: 1-90 mA Input Voltage: 120 or 240 VAC Input Frequency: 50/60 Hz Output Voltage: 200-300 V Output Frequency: 500-800 Hz

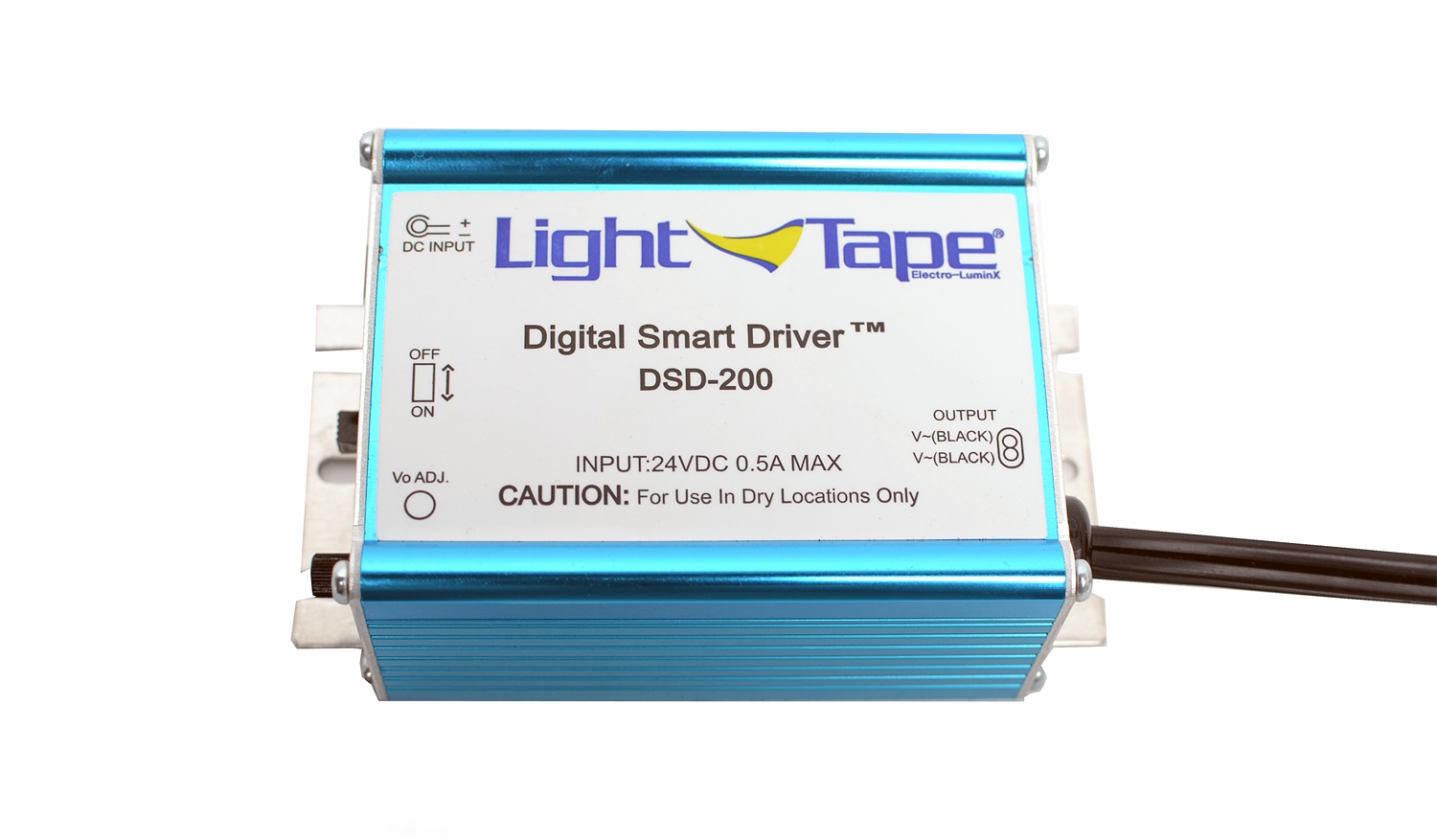

Model DSD-200

Illuminated Area: 5-250 sq. in.
Input Current: 1-90 mA
Input Voltage: 120 or 240 VAC
Input Frequency: 50/60 Hz
Output Voltage: 200-300 V
Output Frequency: 500-800 Hz

 Model SD-2000  Illuminated Area: 1250-2500 sq. in. Input Current: 120-2250 mA Input Voltage: 120 or 240 VAC Input Frequency: 50/60 Hz Output Voltage: 200-300 V Output Frequency: 500-800 Hz

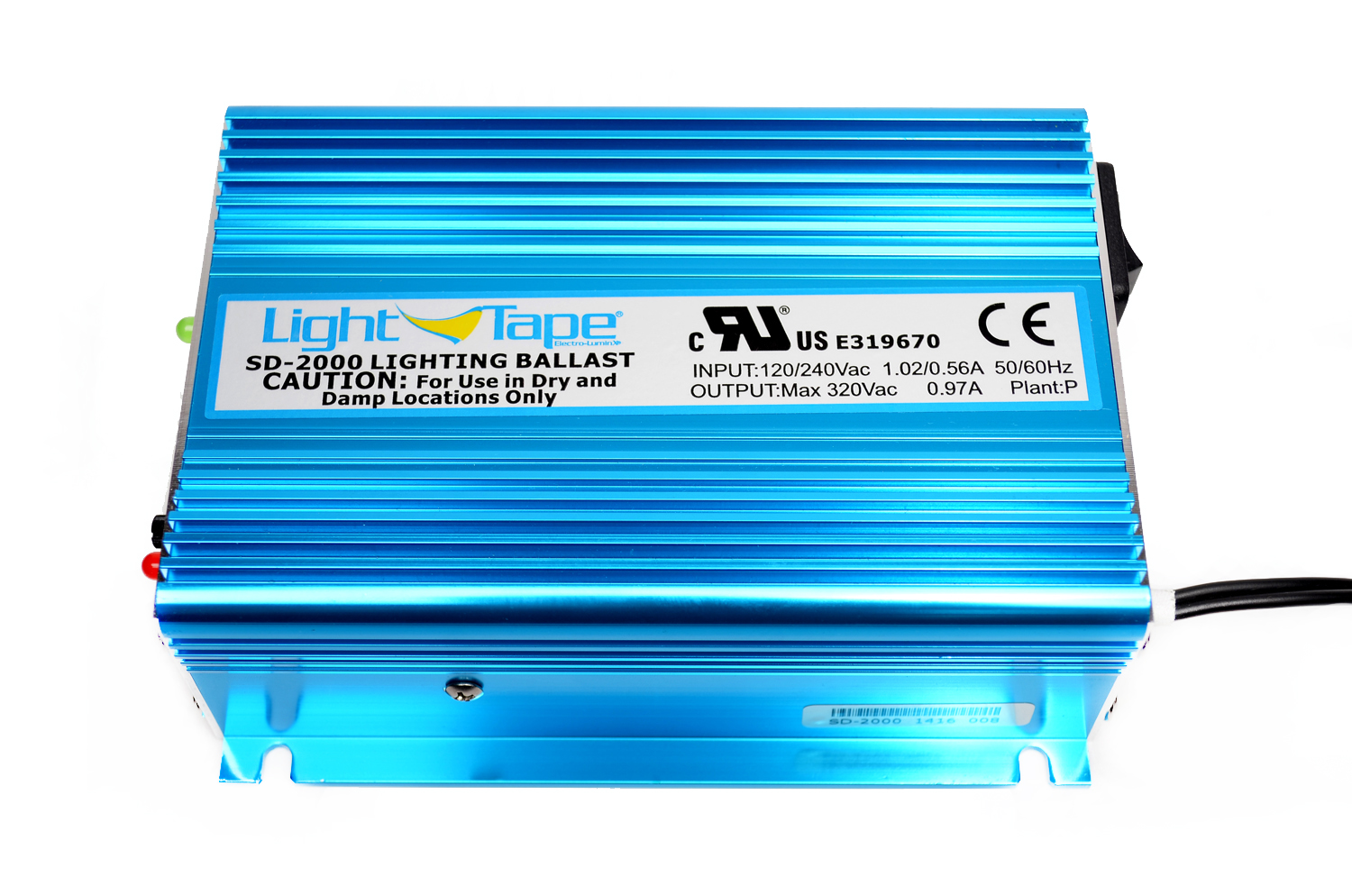

Model SD-2000

Illuminated Area: 1250-2500 sq. in.
Input Current: 120-2250 mA
Input Voltage: 120 or 240 VAC
Input Frequency: 50/60 Hz
Output Voltage: 200-300 V
Output Frequency: 500-800 Hz

 Model SD-400  Illuminated Area: 250-610 sq. in. Input Current: 800-2500 mA Input Voltage: 120 or 240 VAC Input Frequency: 50/60 Hz Output Voltage: 200-300 V Output Frequency: 600-900 Hz

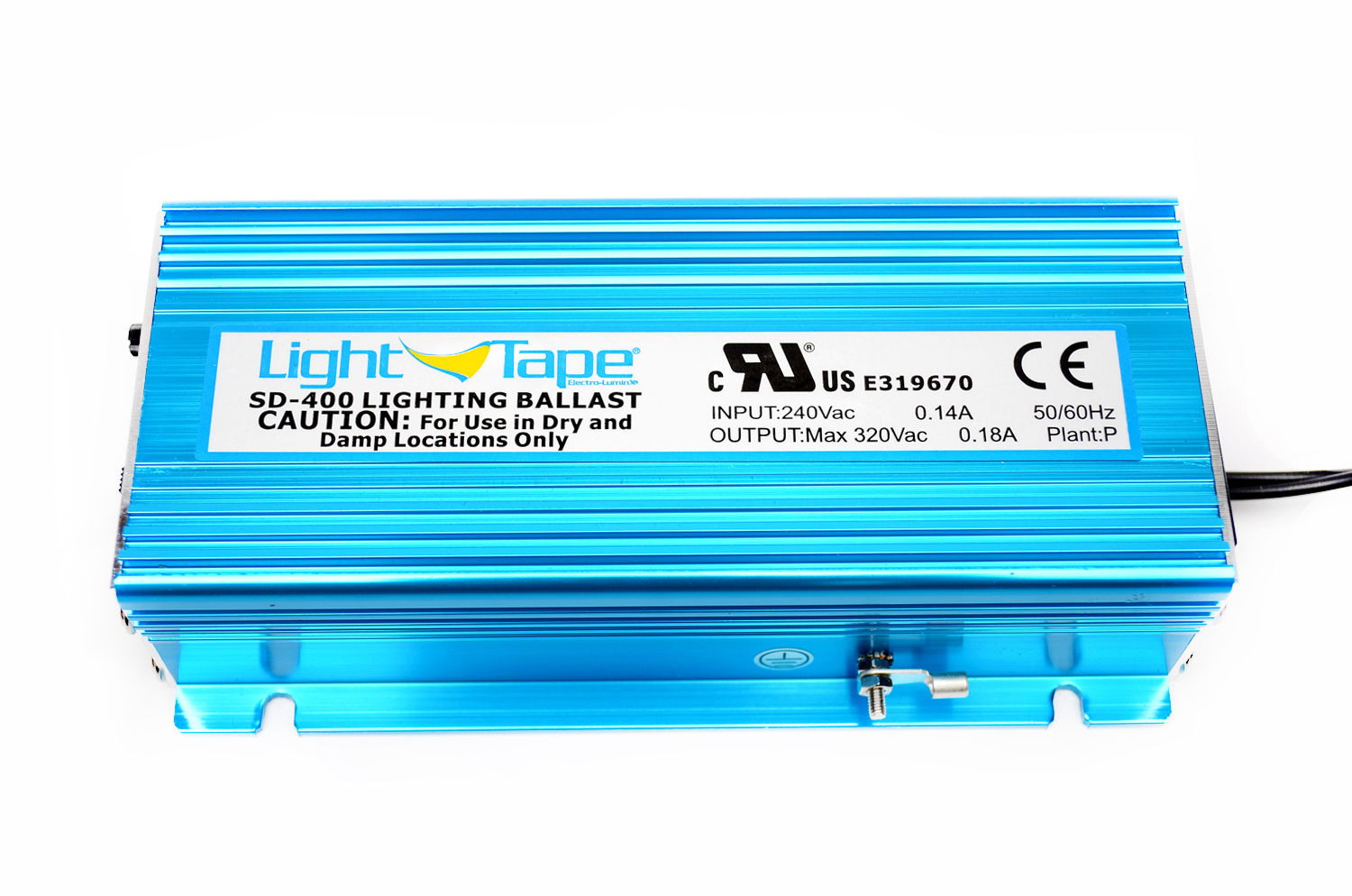

Model SD-400

Illuminated Area: 250-610 sq. in.
Input Current: 800-2500 mA
Input Voltage: 120 or 240 VAC
Input Frequency: 50/60 Hz
Output Voltage: 200-300 V
Output Frequency: 600-900 Hz

 Model SD-4000  Illuminated Area: 2500-6500 sq. in. Input Current: 420-3300 mA Input Voltage: 120 or 240 VAC Input Frequency: 50/60 Hz Output Voltage: 200-300 V Output Frequency: 500-800 Hz

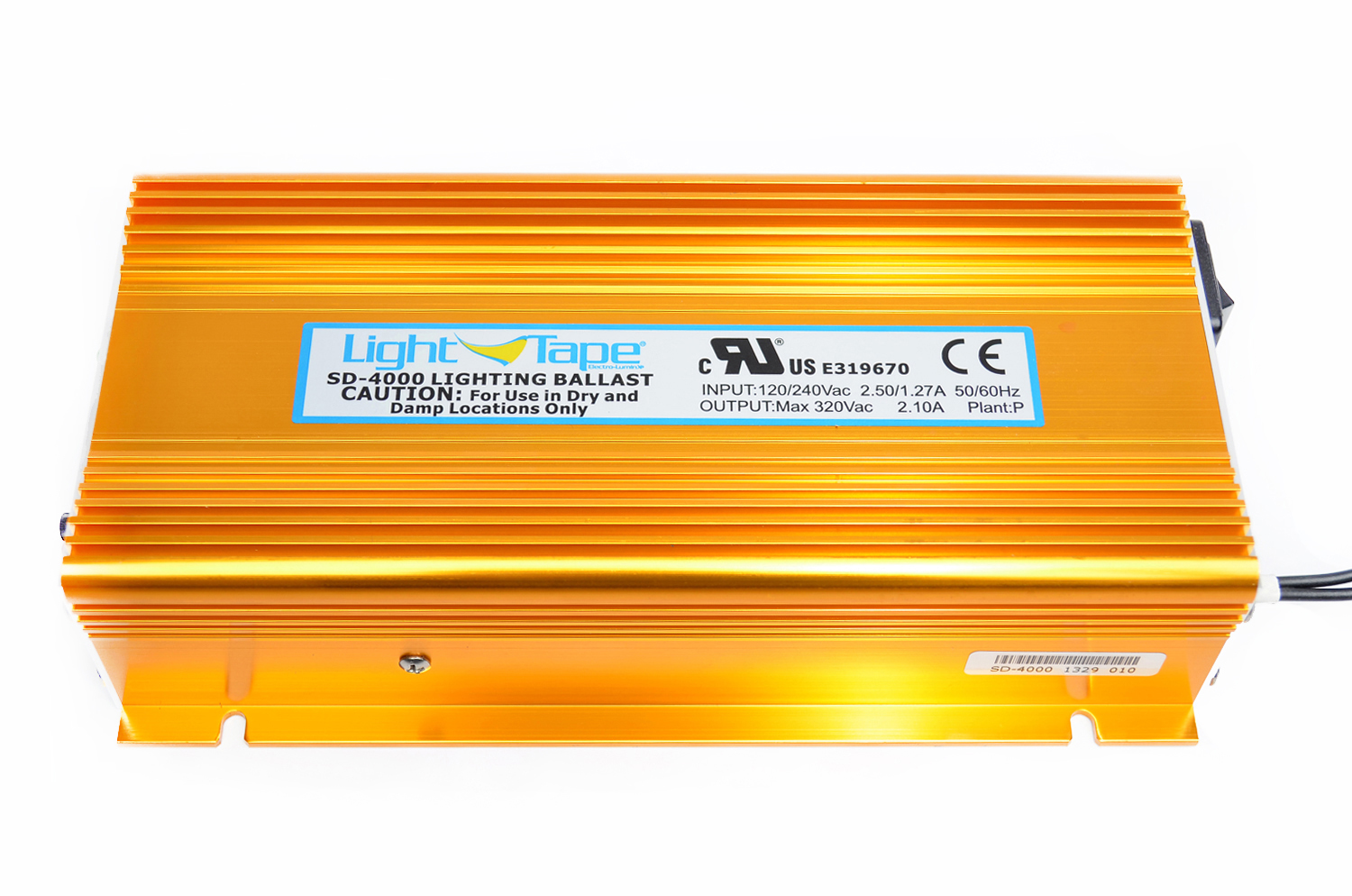

Model SD-4000

Illuminated Area: 2500-6500 sq. in.
Input Current: 420-3300 mA
Input Voltage: 120 or 240 VAC
Input Frequency: 50/60 Hz
Output Voltage: 200-300 V
Output Frequency: 500-800 Hz

 Model SD-1000  Illuminated Area: 555-1410 sq. in. Input Current: 450-700 mA Input Voltage: 120 or 240 VAC Input Frequency: 50/60 Hz Output Voltage: 200 -300 V Output Frequency: 600-900 Hz

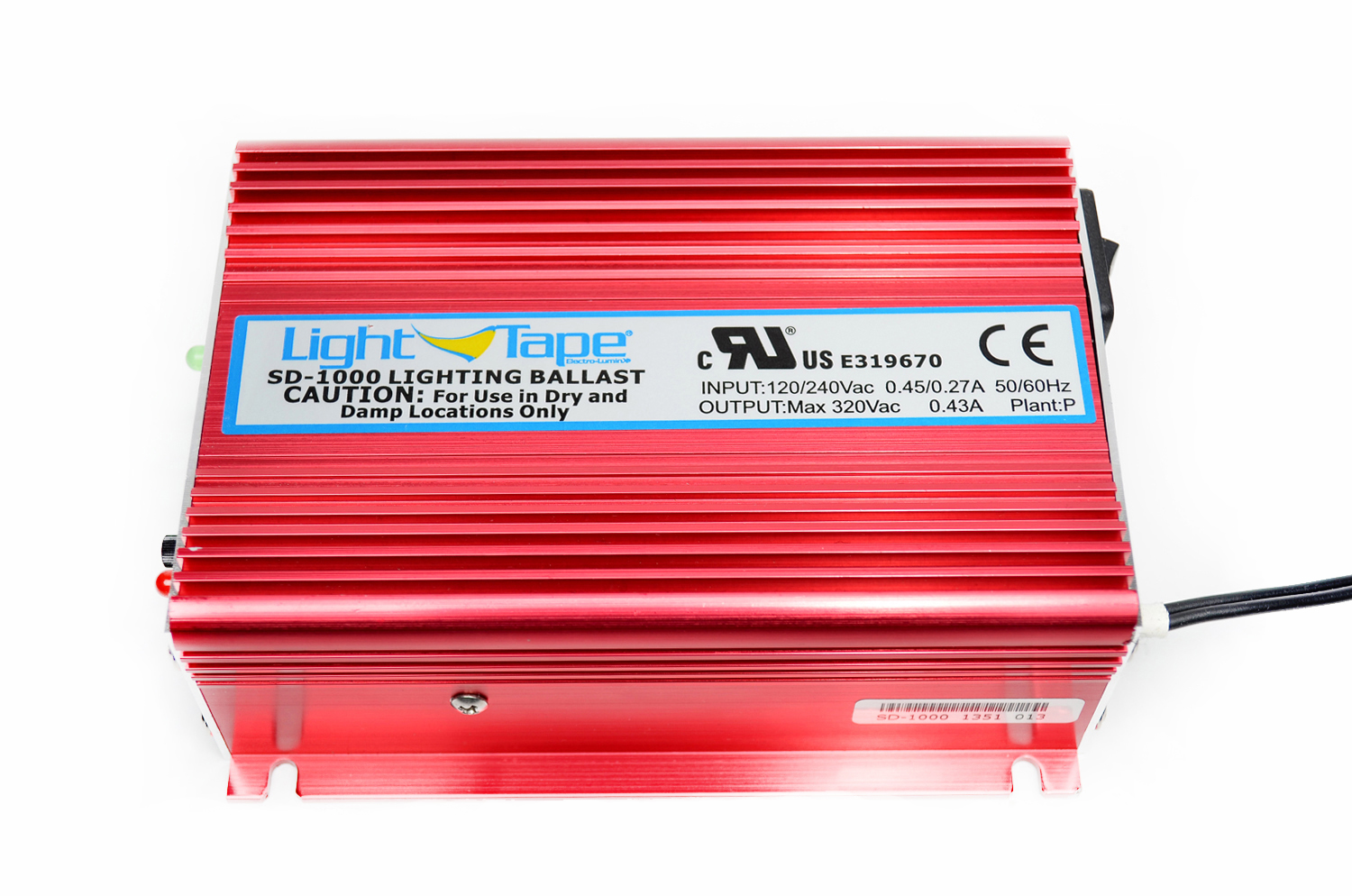

Model SD-1000

Illuminated Area: 555-1410 sq. in.
Input Current: 450-700 mA
Input Voltage: 120 or 240 VAC
Input Frequency: 50/60 Hz
Output Voltage: 200 -300 V
Output Frequency: 600-900 Hz

 Model SD-8000  Illuminated Area: 8000 sq. in. Input Current: 800-4500 mA Input Voltage: 120 or 240 VAC Input Frequency: 50/60 Hz Output Voltage: 200-300 V Output Frequency: 500-680 Hz

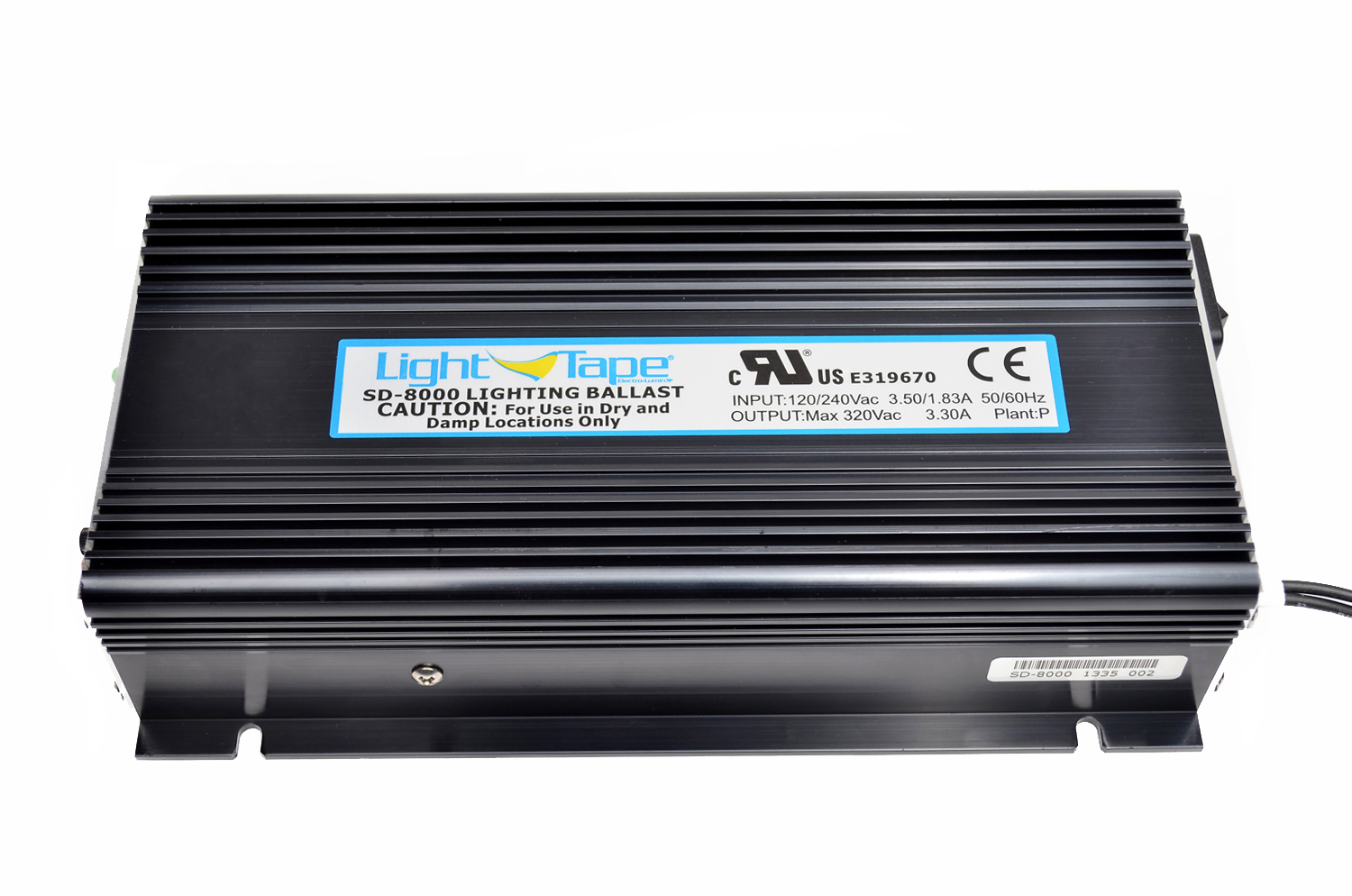

Model SD-8000

Illuminated Area: 8000 sq. in.
Input Current: 800-4500 mA
Input Voltage: 120 or 240 VAC
Input Frequency: 50/60 Hz
Output Voltage: 200-300 V
Output Frequency: 500-680 Hz


 Model DC-9V  Illuminated Area: 1-33 sq. in. Input Current: ~144 mA Input Voltage: 9 VDC Output Voltage: 200-300 VAC Dimensions: 2.31” x 2.31” x 0.94” Weight: 0.15 lbs (2.4oz)

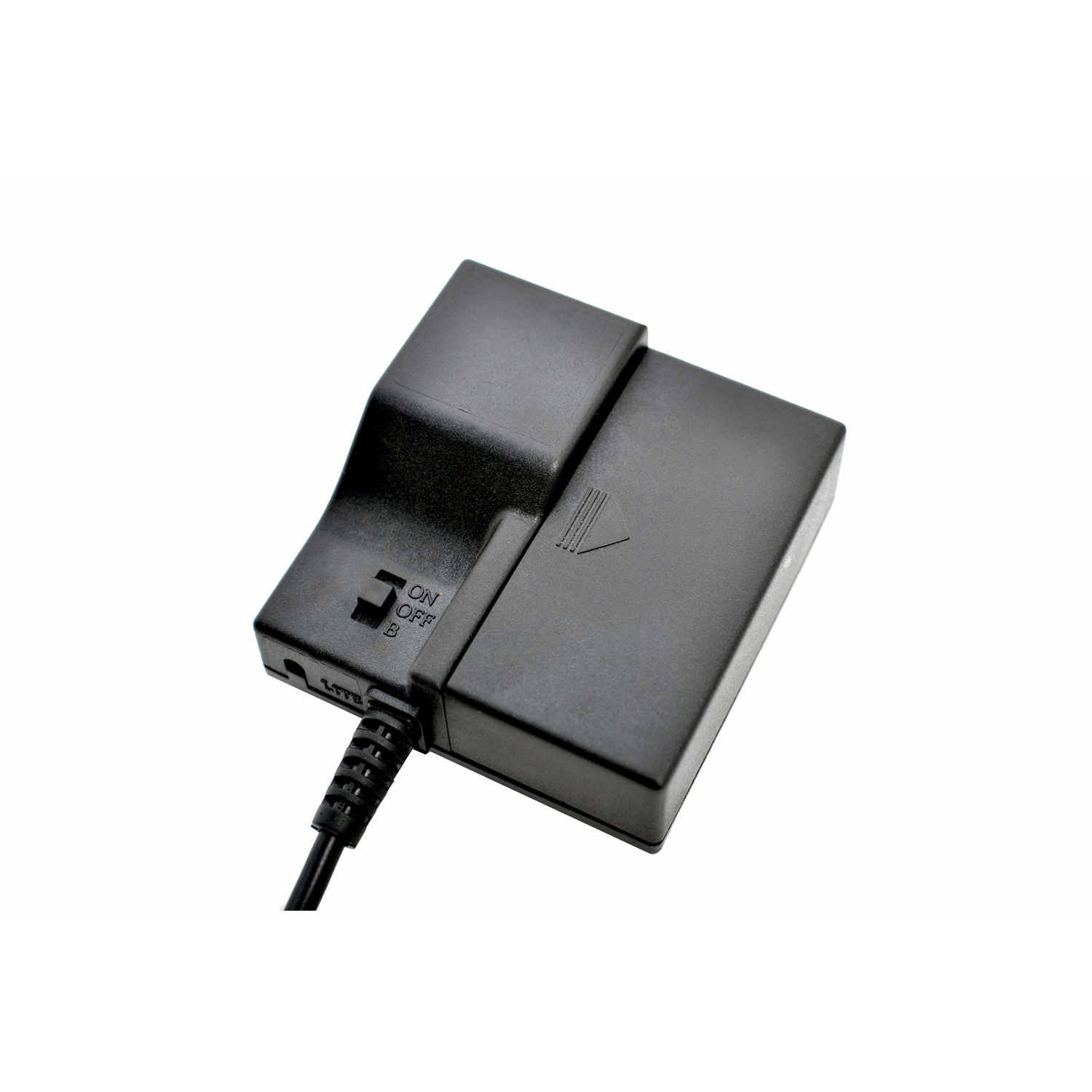

Model DC-9V

Illuminated Area: 1-33 sq. in.
Input Current: ~144 mA
Input Voltage: 9 VDC
Output Voltage: 200-300 VAC
Dimensions: 2.31” x 2.31” x 0.94”
Weight: 0.15 lbs (2.4oz)

 Model DC-100P  Illuminated Area: 45-80 sq. in. Input Current: ~438 mA Input Voltage: 12 VDC Output Voltage: 200-300 VAC Dimensions: 2.87” x 2” x 1.47” Weight: 0.45 lbs (7.2 oz)

Model DC-100P

Illuminated Area: 45-80 sq. in.
Input Current: ~438 mA
Input Voltage: 12 VDC
Output Voltage: 200-300 VAC
Dimensions: 2.87” x 2” x 1.47”
Weight: 0.45 lbs (7.2 oz)

 Model DC-20P  Illuminated Area: 1-18 sq. in. Input Current: ~88 mA Input Voltage: 12 VDC Output Voltage: 200-300 VAC Dimensions: 1.75” x 1.08” x 0.79” Weight: 0.1 lbs (1.6 oz)

Model DC-20P

Illuminated Area: 1-18 sq. in.
Input Current: ~88 mA
Input Voltage: 12 VDC
Output Voltage: 200-300 VAC
Dimensions: 1.75” x 1.08” x 0.79”
Weight: 0.1 lbs (1.6 oz)

 Model DC-150P  Illuminated Area: 80-150 sq. in. Input Current: ~656 mA Input Voltage: 12 VDC Output Voltage: 200-300 VAC Dimensions: 3.88” x 2.08” x 1.5” Weight: 0.6 lbs (9.6 oz)

Model DC-150P

Illuminated Area: 80-150 sq. in.
Input Current: ~656 mA
Input Voltage: 12 VDC
Output Voltage: 200-300 VAC
Dimensions: 3.88” x 2.08” x 1.5”
Weight: 0.6 lbs (9.6 oz)

 Model DC-50P  Illuminated Area: 18-45 sq. in. Input Current: ~219 mA Input Voltage: 12 VDC Output Voltage: 200-300 VAC Dimensions: 2.87” x 2” x 1.47” Weight: 0.45 lbs (7.2 oz)

Model DC-50P

Illuminated Area: 18-45 sq. in.
Input Current: ~219 mA
Input Voltage: 12 VDC
Output Voltage: 200-300 VAC
Dimensions: 2.87” x 2” x 1.47”
Weight: 0.45 lbs (7.2 oz)

 Model DC-500P  Illuminated Area: 150-500 sq. in. Input Current: ~2188 amps Input Voltage: 12 VDC Output Voltage: 200-300 VAC Dimensions: 5.14” x 2.33″ x 1.74” Weight: 1.85 lbs (29.6 oz)

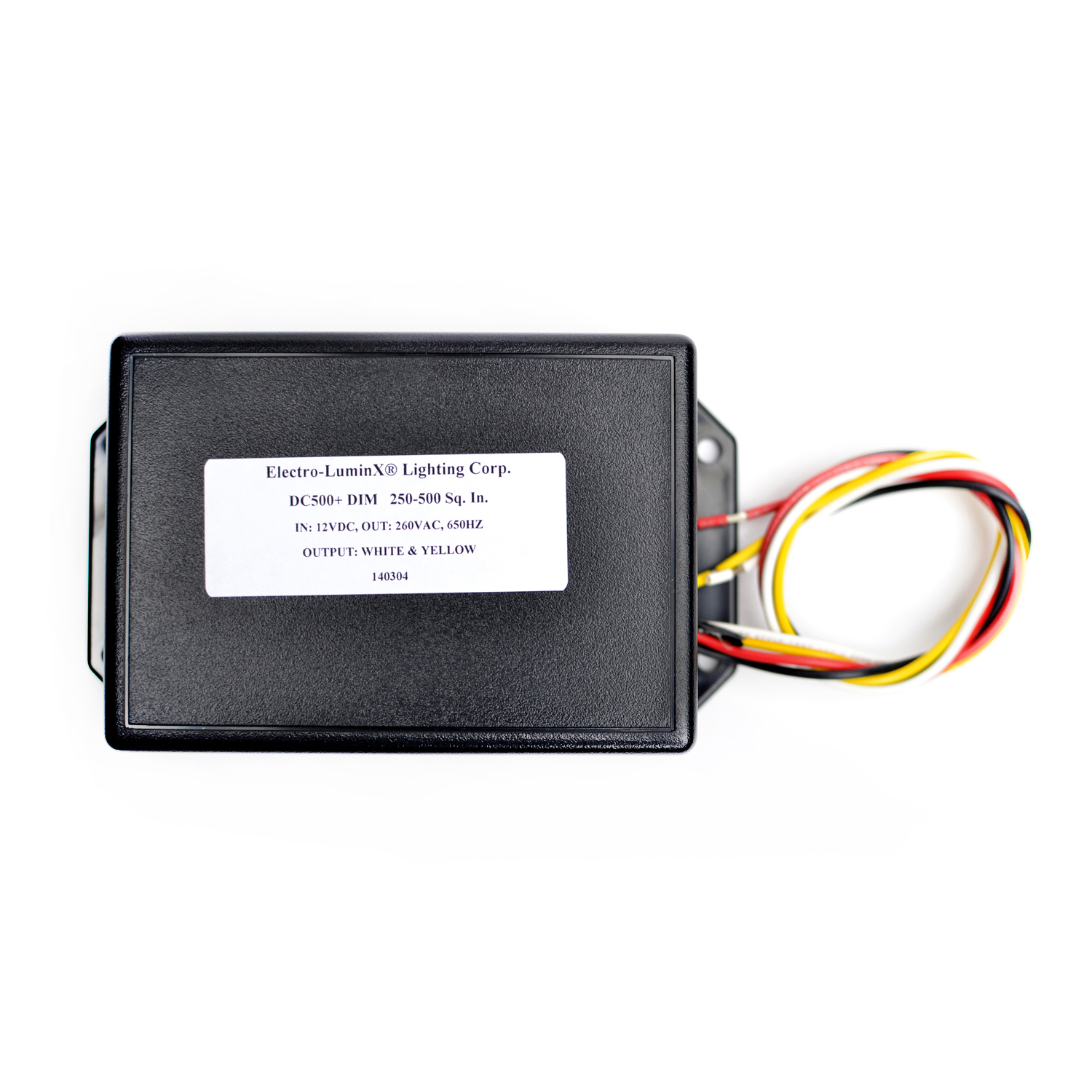

Model DC-500P

Illuminated Area: 150-500 sq. in.
Input Current: ~2188 amps
Input Voltage: 12 VDC
Output Voltage: 200-300 VAC
Dimensions: 5.14” x 2.33″ x 1.74”
Weight: 1.85 lbs (29.6 oz)

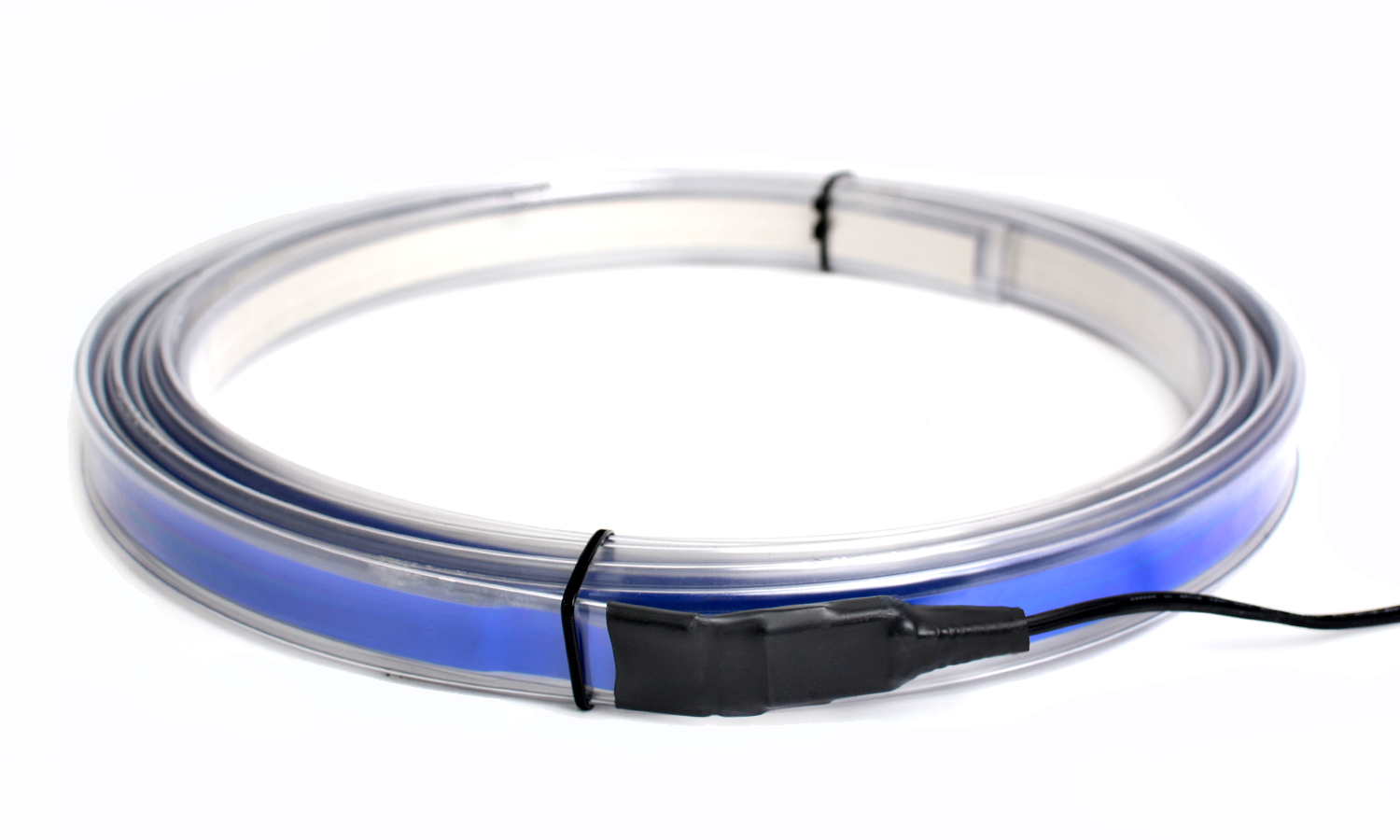

Outdoor Extrusion: Snap-N-Light™

Our patented electroluminescent technology protects encapsulated phosphors from moisture and sunlight. Your extrusion arrives fitted in the mounting channel with connector already attached and shrink wrapped like in the photo to the right.

Download our Snap-N-Light ™ specifications for more detailed information.

Size Options

Our extrusions come in four sizes designed to fit our 0.25″, 0.5″, 1.0″ and 2.0″ Light Tape® widths and available in lengths up to 100 feet. For additional lengths, contact one of our lighting gurus.


 Model Mount-EXT-050  Illuminated Width: 0.5” (12.7mm) Laminated Width: 1” (25.4mm) Mounting Clip: 1.215” (30.88mm)

Model Mount-EXT-050

Illuminated Width: 0.5” (12.7mm)
Laminated Width: 1” (25.4mm)
Mounting Clip: 1.215” (30.88mm)

 Model Mount-EXT-100  Illuminated Width: 1.0” (25.4mm) Laminated Width: 1.5” (38.1mm) Mounting Clip: 1.716” (43.59mm)

Model Mount-EXT-100

Illuminated Width: 1.0” (25.4mm)
Laminated Width: 1.5” (38.1mm)
Mounting Clip: 1.716” (43.59mm)

 Model Mount-EXT-150  Illuminated Width: 1.5” (38.1mm) Laminated Width: 2” (50.8mm) Mounting Clip: TBC

Model Mount-EXT-150

Illuminated Width: 1.5” (38.1mm)
Laminated Width: 2” (50.8mm)
Mounting Clip: TBC

 Model Mount-EXT-200  Illuminated Width: 2.0” (50.8mm) Laminated Width: 2.5” (63.5mm) Mounting Clip: 2.737” (69.51mm)

Model Mount-EXT-200

Illuminated Width: 2.0” (50.8mm)
Laminated Width: 2.5” (63.5mm)
Mounting Clip: 2.737” (69.51mm)

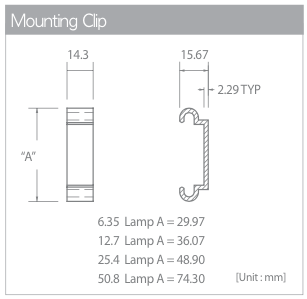

Snap-N-Light™ Channel and Clip Measurements

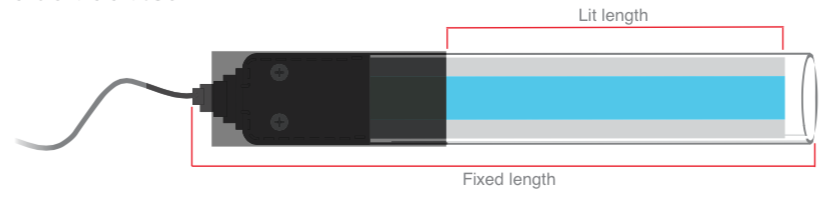

When specifying our Snap-N-Light™ extrusion into your design,t is important to consider the extra length added to the extrusion. The connector and shrink tube will add approximately 5.0 inches of length to your total length. Because we are constantly improving our technology please contact our lighting guru for exact measurements.



Please allow an additional 5.5” when determining the dimensions of your Light Tape’s              Snap-N-Light™ system. This 5.5” accounts for 4.5 inches for the Light Tape® Connector and strain relief, 1/2” for wire flex, and 1/2” for the area between the end of the lit area and the end of the extrusion.

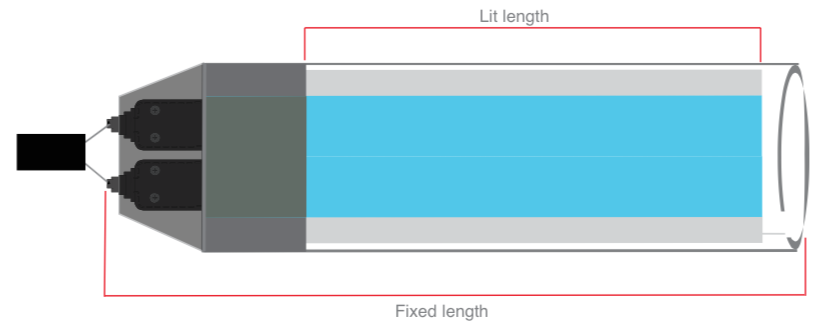

The 2” wide Light Tape® Snap-N-Light™ system employs two connection points for optimal performance. Please allow an additional 5.5” when determining the dimensions of your Light Tape’s Snap-N-Light™ system. This 5.5” accounts for 4.5 inches for the Light Tape® Connector and strain relief, 1/2” for wire flex, and 1/2” for the area between the end of the lit area and the end of the extrusion.
